If your e-bike is showing an error code, it means the system has detected a fault and needs attention. Some you can fix yourself in minutes, others need a professional diagnosis. This guide covers the most common error codes across Bosch, Shimano, Yamaha, and Bafang systems, what each one means, and exactly what to do next.
Modern e-bikes are essentially computers on wheels. The motor, battery, display, sensors, and controller are all communicating constantly. When one part stops responding properly, or detects something outside normal parameters, the system throws an error code on your display and often cuts motor assistance to protect the components.
This is actually a good thing. Error codes are your e-bike telling you something is wrong before it becomes a much bigger and more expensive problem.
The first thing to always try: turn the bike completely off, wait 10 seconds, and turn it back on. A surprising number of codes are caused by temporary glitches and will clear on restart.
Do these three checks first, regardless of which code is showing:
If the error clears after these checks, you are good to go. If it comes back, read on.
Bosch is one of the most common e-bike motor systems in Australia. Their error codes are numerical and appear directly on the display.
This is the most frequently seen Bosch error. It means the system cannot read your speed properly.
What to check:
Many riders fix this themselves by simply repositioning the spoke magnet. If the error returns after that, the sensor itself may need replacing.
These indicate that parts of the system are not communicating properly with each other.
Check all physical connections first. If they look fine and the error keeps coming back, these codes usually require a software diagnostic tool. This is the point where calling a professional makes sense.
This one is serious. Error 500 means the motor itself has detected an internal problem. Do not keep riding on this error. It requires professional diagnosis and in some cases a firmware update or motor service.
The motor has overheated, usually after a long climb in warm weather. Pull over, turn the bike off, and let it cool down for 15 to 20 minutes. This usually clears on its own. If it keeps happening on moderate rides, get the motor checked.
Shimano uses a mix of "W" (warning) and "E" (error) codes on their STEPS system.
One of the most common Shimano codes. It usually means the torque sensor was not calibrated correctly or was triggered by a sudden pedal input.
Important: Never push hard on the pedals from a standing start on a Shimano system. Starting gently is a known way to avoid triggering W013. If the code appears regularly regardless of how you start, the torque sensor may need professional recalibration.
A general system fault. Try a full restart first. If it returns, this typically needs a workshop with Shimano diagnostic software to identify the specific cause.
Similar to the Bosch 503. Check your spoke magnet alignment first before anything else.
Yamaha motors are known for their reliability and motor faults are less common than on some other systems.
These codes all relate to the torque sensor. On Giant e-bikes with Yamaha motors, errors are sometimes shown as flashing battery indicator lights rather than a numbered code. All indicators flashing three times signals a system fault.
Check the spoke magnet position and wiring connections first. If the motor still runs but at reduced capacity, the speed sensor is likely not reading correctly.
One important note: because bike manufacturers can fit their own displays to Yamaha motors, error codes can vary between brands. Always check your bike's specific manual alongside a general guide like this one.
Bafang systems are common on mid-range and converted e-bikes. Their errors often relate to sensors, throttle, and communication between components.
These usually point to a faulty sensor or obstruction in the throttle or cables.
What to check: Clean all connectors and sensors. Check cables for visible wear, pinching, or corrosion. The spoke magnet gap for Bafang systems should be between 10 and 20mm, which is slightly wider than Bosch and Shimano.
Perth summers can be tough on e-bike electronics. Temperature affects these systems more than most riders realise.
Cold mornings: A cold battery can trigger undervoltage errors that disappear once the battery warms up. This is normal and not a sign of a fault.
Hot climbs or sun exposure: The motor or controller can overheat on long climbs during summer, triggering thermal protection errors. Pull over, find some shade, and let the system cool for 15 to 20 minutes.
If errors only appear at the very start of a cold ride or after a tough climb on a hot day, temperature is almost certainly the cause and no repair is needed.
Ignoring a persistent error can make things significantly worse. Riding on a damaged bearing error, for example, can lead to complete motor failure. Catching it early is always the cheaper outcome.
When you book a mobile e-bike service with Cloud Cycles, we come to your home or workplace across Perth. There is no need to load the bike into your car or wait days for a workshop slot.

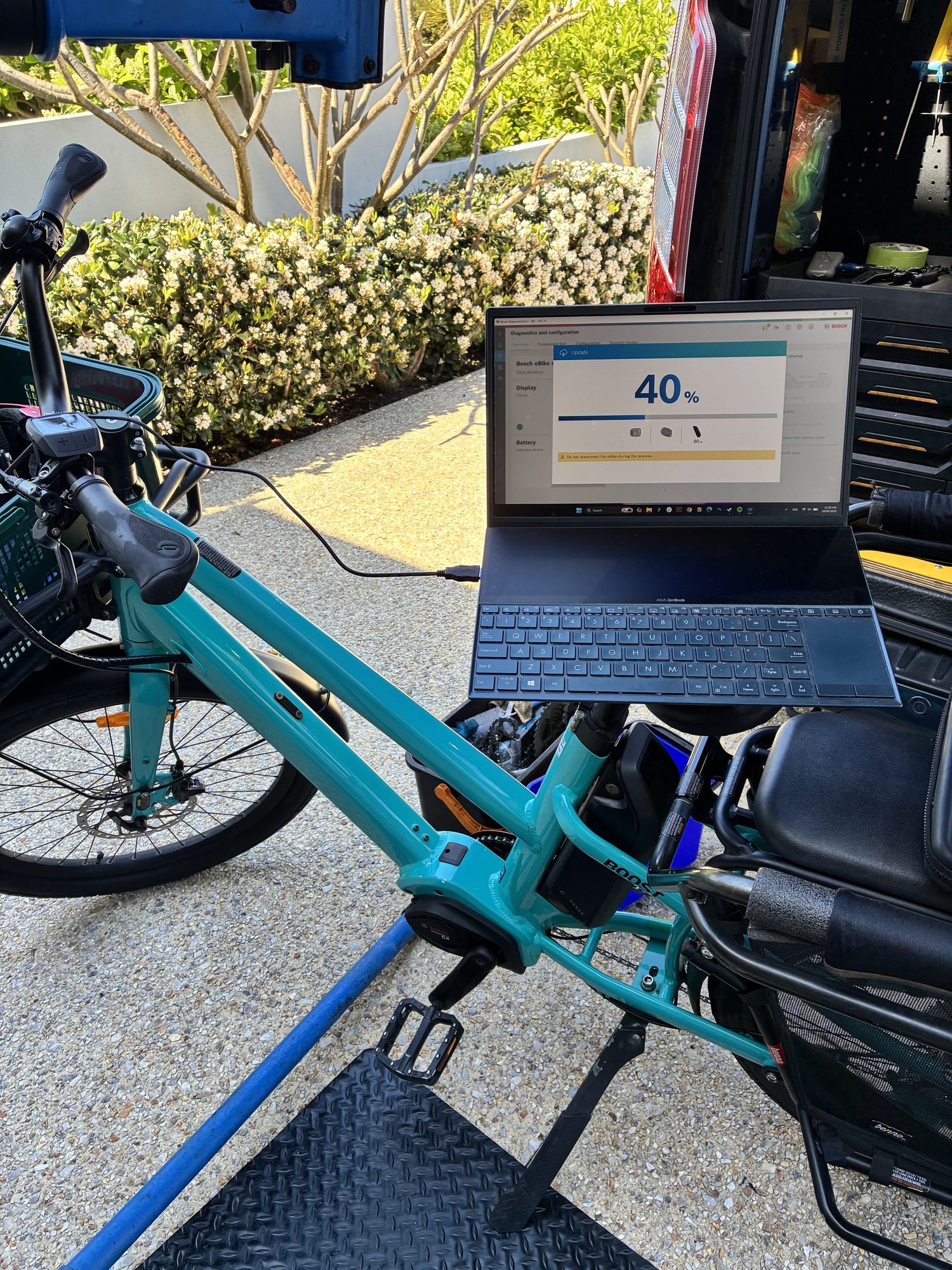

We check both the mechanical and electrical systems, including motor, battery, firmware, and drivetrain. Before any work starts, we walk you through exactly what we found and what the fix involves. You get a clear quote upfront, with no surprises.
Our team is Cytech certified with over 15 years of hands-on experience, and we service all major e-bike systems including Bosch, Shimano STEPS, Yamaha, and Bafang across the Perth metro area.
It depends on the code. Minor sensor warnings may still allow motor assistance, but internal motor faults will usually cut off power for safety. If the motor cuts out or you are seeing a numbered fault code rather than a warning, stop riding and get it looked at.
Yes, genuinely. A full system restart clears temporary glitches and is always the right first step. If the error does not come back, it was likely a one-off.
No. Each manufacturer uses their own system, and even different generations of the same brand can vary. Always check your bike's manual alongside a general guide like this one.
Turn it off immediately and do not try to restart it while wet. Dry the bike thoroughly, paying close attention to connectors, and leave it somewhere dry for several hours before turning it on again. If errors persist after drying, seek professional help. Moisture inside connectors or the motor can cause lasting damage if ignored.
Generally every 6 to 12 months depending on how often you ride, or around every 1,000 to 1,500km. Regular servicing catches small issues such as loose connectors, spoke magnet drift, and firmware updates before they turn into error codes.
Yes. Cloud Cycles services all major e-bike systems including Bosch, Shimano STEPS, Yamaha, and Bafang across Perth and surrounding suburbs.
